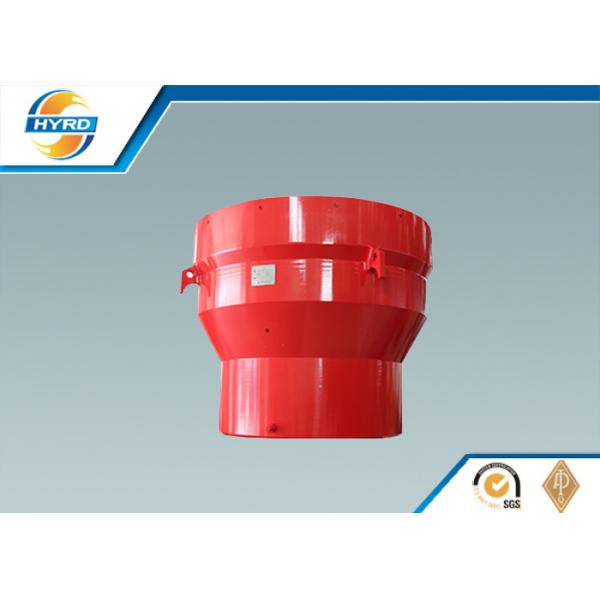

Oil Field Drilling Equipment Wellhead Control System Drilling Diverter

Name: Oil Field Drilling Equipment Wellhead Control System Drilling Diverter
Brand: Renda
Price: 1 USD

Brand Name : Renda

Certification : API

Place of Origin : China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union,

Supply Ability : Based on Detailed Order

Delivery Time : 10-15 working days

Packaging Details : Standard wooden export box

Processing Type : Forging

Machine Type : Drilling Equipment

Usage : Oil field

Condition : New

Warranty : 1 Year

Contact Now

Diverter , Well Control Equipment , for Well Drilling Oilfield wellhead control

Description:

Our company produces the design and manufacture of diverters according to API 16 a, flange specifications in accordance with ASME B16.47 standard for< large diameter pipe steel flange >requirements. 29 1/2 "- 500 psi diverter`s top and bottom connections are class 300 B16 / A NPS30 R95, 30" - 1000 psi diverter`s top and bottom connections are class 600 B16 NPS30 R95 / A.

Specifications:

Diverter and packing element specification form

Model	Main bore mm(in)	Working pressure MPa(psi)	Operating pressureMPa	Connection type		Dimension mm		weight kg	Recommended bop type
				Top	Bottom	Outside diameter	Height
FFZ75-3.5	749.3(29 1/2)	3.5(500)	8.4～10.5	studded	fanged	1910	1798	12607	H06.00C
FFZ76-07	762 (30)	7(1000)				1805	1700	13866	H31.00
29 1/2”-500 psi Diverter top&bottom connection: class 300 B16/A NPS30 R95
30”-1000 psi Diverter top&bottom connection: class 300 B16/A NPS30 R95
